Using Variables to Create a Dynamic UI

As outlined in the Storyboard Architecture chapter, Storyboard variables play an important role in making the presentation of a UI dynamic. Render extensions and actions have sets of properties, such as color, size, alignment, or name, that define their behavior or operation. By default, these properties contain fixed values that do not change from the values they are given at design time. This would nominally make for a static and fixed user interface and probably an unsatisfying user experiences. To give rendered content and executed actions dynamic behavior that can be modified when the application runs, these properties can be bound to variables.


Variables, like actions, are associated with a particular model element. The model element that they are associated with typically is an indication of the intended scope of use for that variable. For example if a variable is associated with a control, then it is likely only render extensions and actions local to that control that are going to be using that variable. If a variable is associated with the application or with a screen, then that implies a broader context of use for the variable. This is not a hard rule however since Storyboard allows references to variables using a fully qualified name as discussed in the Storyboard Architecture chapter.

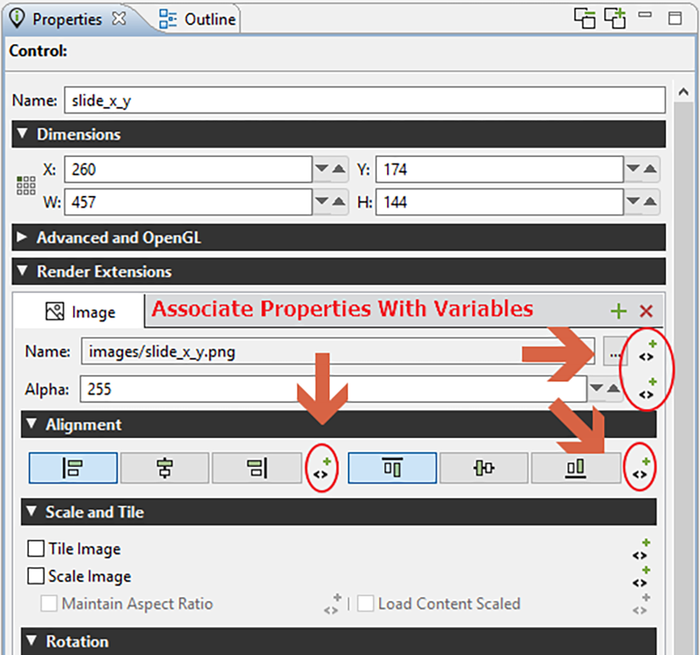

The preferred way of creating a variable is to create it at the point where the variable is going to be used, for example associated with particular render extension's property. Within the Design environment, you will know if a property can be made dynamic and bound to a variable by the presence of a variable binding <> indicator next to the property name in the Properties View. Pressing on this icon will automatically open up the Variable Selection dialog prompting you to select an existing variable from the application model. If the variable you want to associated is not listed and you want to create a new variable, then this is easily accomplished from within this dialog by pressing on the New... button. This will then open the New Variable dialog allowing you the ability to create a new variable directly in place. The variable will be created and associated with the model element that you were looking at within the Variable Selection dialog and automatically selected for you.

The alternative way to create variables is to create them directly on the model objects that they will be associated with through the Variables View or the Application Model View using the Add > Variable functionality which will open up the New Variable dialog. This method is more direct, but more prone to error because you will be asked to provide a type association for the variable. When variables are selected, and created, through a particular property the type information is passed along and used as a filter so that the subsequent dialogs will only allow you to select or create variables that match the type of the property you want to bind to.

You can identify that a variable has been bound to a render extension or action property by the change in presentation of that property in the Properties View. Properties that have not been bounds will simply show the name of the property and it's current value. Properties that have been bound to a variable will have an additional annotation indicating the variable that has been associated in the form of ${...:variable_name}. This annotation will show in green if the variable has been resolved in the Design environment and will show in red if the variable can not be resolved.

To change the variable binding to a new or different variable, then just repeat the process of clicking on the variable binding <> indicator to re-open the Variable Selection dialog. To remove a variable binding on a property you can right click on the variable binding <> indicator and then select Unbind. This will remove the binding but will not remove the variable definition. To remove the variable definition, delete the variable from the Application View or from the Variables View

Once a variable is created and associated with a property, any change in that variables value will cause the Storyboard Engine to automatically schedule a redraw operation of any elements that might be affected by the change. Variables can be bound to multiple properties at the same time. In fact this is a common Storyboard design pattern to create styles within the application for shared behavior that you want to treat in a uniform manner. An example of such a use would be the definition of application variables for font names and font sizes or a set of translation text values that should be used commonly throughout the application. During design, the value of the variable can be changed either directly when adjusting a property that has been bound to a variable by changing the value in the Properties View or by making a change directly in the Variables View. When the value of a variable changes in the Design environment the change will propagate through to all clients who are referencing that variable in a similar manner to what happens when the value of a variable is changed at runtime.

Variables are generally manipulated directly in one of two ways; via a DataChange Action or as part of a Lua callback function in a Lua Action. The DataChange Action's is a simple action that allows one or more variables to have their value set to a new value. The new value can be fixed or it can also be the value of another variable extracted at runtime. It is ideal for scenarios where there is no additional computation or logic required, simply a new value has to be assigned to a variable. If more sophistication is required, then the Storyboard Lua API provides a comprehensive API for reading and writing variables defined as part of the Storyboard model and offers a rich set of conditional logic and IO facilities that can be used to guide the setting of variable values. The Animation Action provides a common third way of manipulating variables and that mechanism is covered in detail in the Creating and Applying Animations chapter of this guide.

Table Variables

Tables variables are the same as any other Storyboard variable, but due to the potential number of such variables, they receive special treatment to facilitate their use. A table variable is different from a normal variable only by the fact that they follow a special naming convention of name.<row>.<col> so that by using a single base name, many different rows and columns can be addressed.

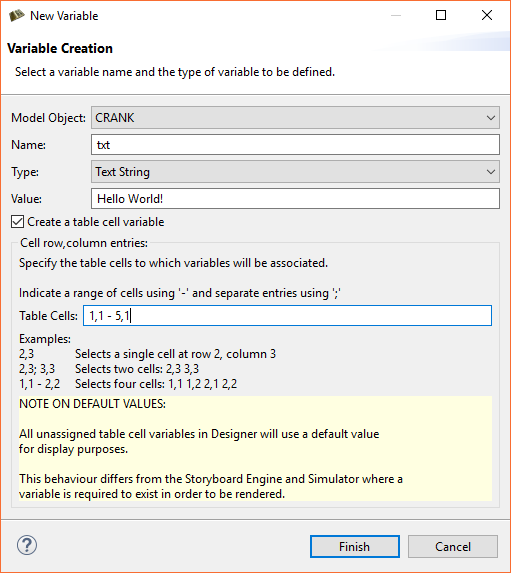

Table variables are created using the same process that normal variables are created. Within the New Variable dialog there is a special check box Create a table cell variable. When this box is selected you will be able to provide information regarding the number of variables that you want to create and which row and columns they will be created for. Once these variables are created, they will be displayed in the Actions View as a tree item with the base name of the variable shown but then expandable to show the individual row and column variable entries with their name.<row>.<col> naming convention.

Table variables show up in the Variable Selection dialog the same way as normal variables do, but only as the basename and not as the individual row/column entries. This is done intentionally to reduce the clutter of the variable selection dialog. When a table variable is bound to a property and it is bounds in the context where the table cell information is available, then the label on the property it is associated should show an annotation that starts with ${cell:...}. If this is not showing this special cell annotation but is showing the normal variable, either the variable was not created as a cell variable and must be re-created or the context of the selection operation did not include a table cell.

Once created, the values of the individual variables can be changed to reflect different representation for different cells. Similar to standard variables, these changes can be made at Design time from either the Properties View as changes to the value of a property or within the Variables View. If using the Properties View to make a change, the variable that will be changed will be the variable whose row and column is in the context of the selection.

Tables are generally filled with content dynamically at runtime, and resized accordingly. To this end the role of the table, and table variables, is to provide enough of a visual representation of the design to ensure that the representation is correct. For example if a table will only be displaying three visual rows of information, but may be dynamically filled to contain 100 rows, then there is no requirement to create a table variable with 100 entries. Create only as many table variables as you need to show the design and leave the remaining variables to be created dynamically at runtime. Doing this will result in a smaller and less cluttered design.

Triggering Events on Variable Changes

As discussed in Event Driven Interaction Model, events can be generated from many different sources. The Storyboard Engine supports the creation of user events (see Connecting Events to Actions) and these events can also be generated by the engine when the value of a variable changes. A typical example of where this type of correlated behavior might be applied is to synchronize a scrollbar style presentation with a section of a scrolling table or layer.

To bind an event to fire when a variable changes you add the event to the variable in the Variables View by selecting the variable you want to bind, right clicking and selecting Bind Event. This will open the standard event selection dialog and allow you to pick (or create) an event to fire when the variable changes.

Similar to screen redraw operations, a new event will not fire every time that a variable's value changes. Instead the first change will cause the event to be queued and until that event is serviced, no subsequent events will be generated. This behavior reflects the intended use of this event generation to allow an efficient coupling of display synchronization to data changes. This functionality should be used with care as overuse of this binding can result in a flood of events and excessive redraw operations.

When the event bound to a variable fires, it will be targeted at its parent model object. This means, for example, if you have a variable associated with a control that the event will be delivered first to that control and then fall down until it hits the active screen and application. This means that actions on objects that are not visible and part of the active screen may fire.
