Storyboard Validator Perspective

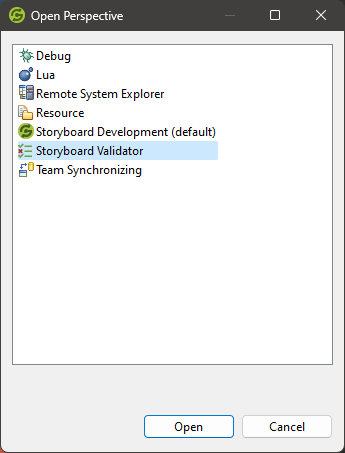

The Storyboard Validator perspective allows for UI tests to be created and run. These tests can be used to validate the running of a UI to make sure that it meets standards required by a project. To open the Validator perspective you can use the menu entry "Perspective" that is found under the "Window" entry in the menu bar. From the list that appears, select "Open Perspective" and then select other. This will show the following dialog:


Another way to open this dialog is to click on the perspective button in the workbench. This button is found in the upper right corner of the application. It looks like this:


When the perspective opens, it will have the following layout:


The two main views of the Validator perspective are the test view and the test report view
