PIC32MZ Demo Image

Experience multi-market demo applications built with Storyboard on your favorite platform. Crank Software demo images showcase Storyboard's design and development capabilities and the application potential of popular platforms. Download the demo image that corresponds with your hardware, which includes everything you need to get and up and running in minutes.

Demo Details

Link:Demo Image

Image Name: CrankSoftware_demo_PIC32MZ-v6.0.0

Rendering Technology: swrender

Demo Resolution:480x272

Operating System: FreeRTOS

This demo image includes the following demos:

  • Coffee Maker

Flashing the PIC32MZ

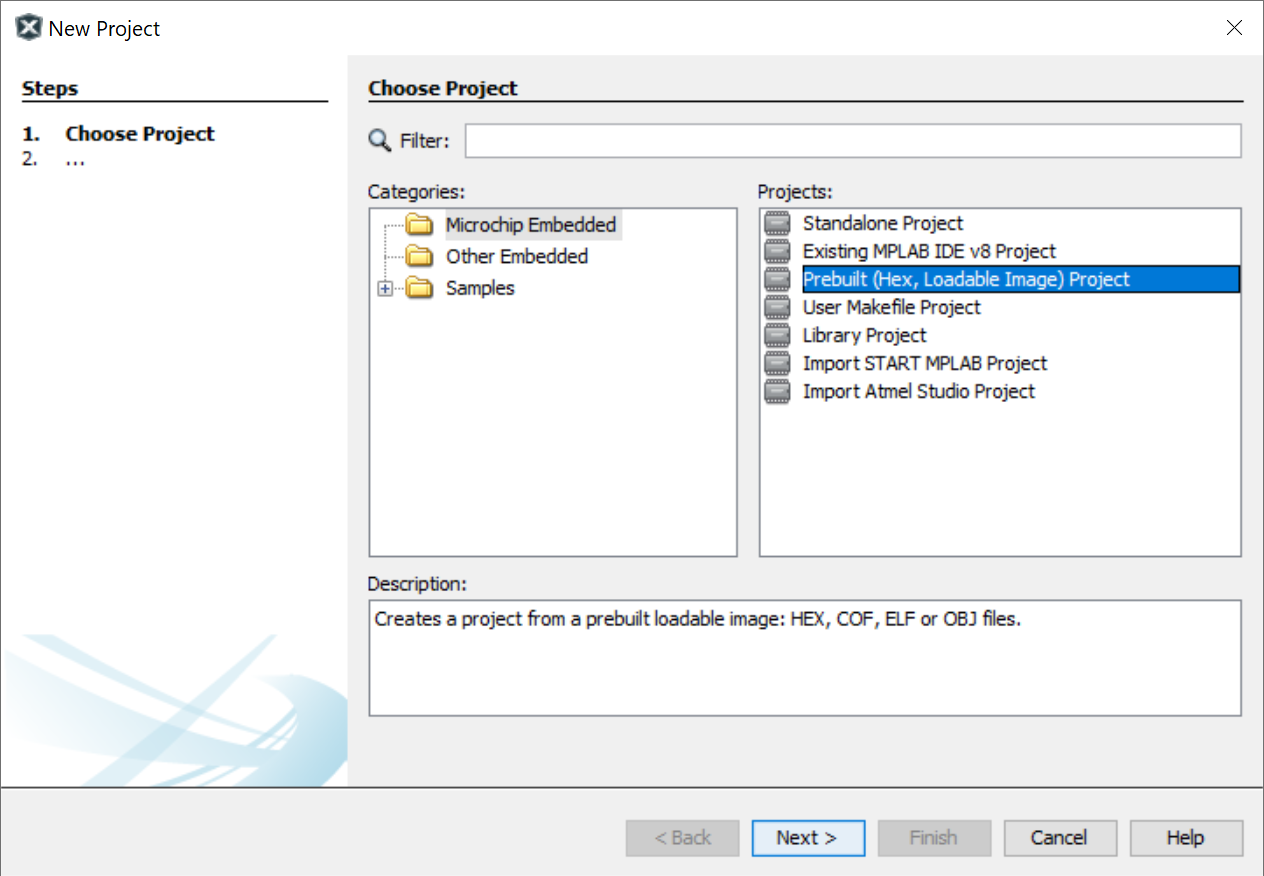

  • Then select "Prebuilt(...) Project"

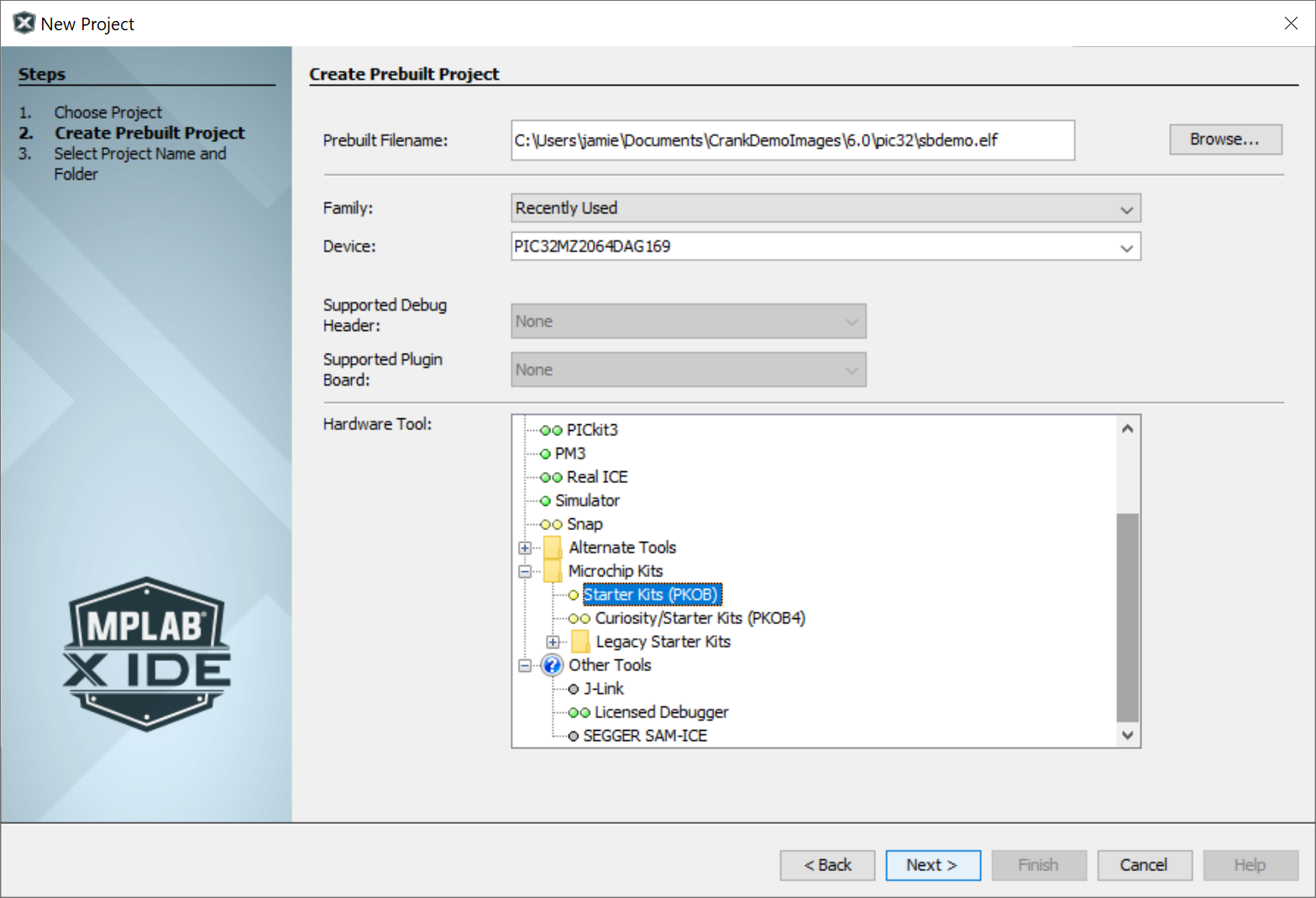

  • Browse to the sbdemo.elf file

  • For Device, select: PIC32MZ2064DAG169

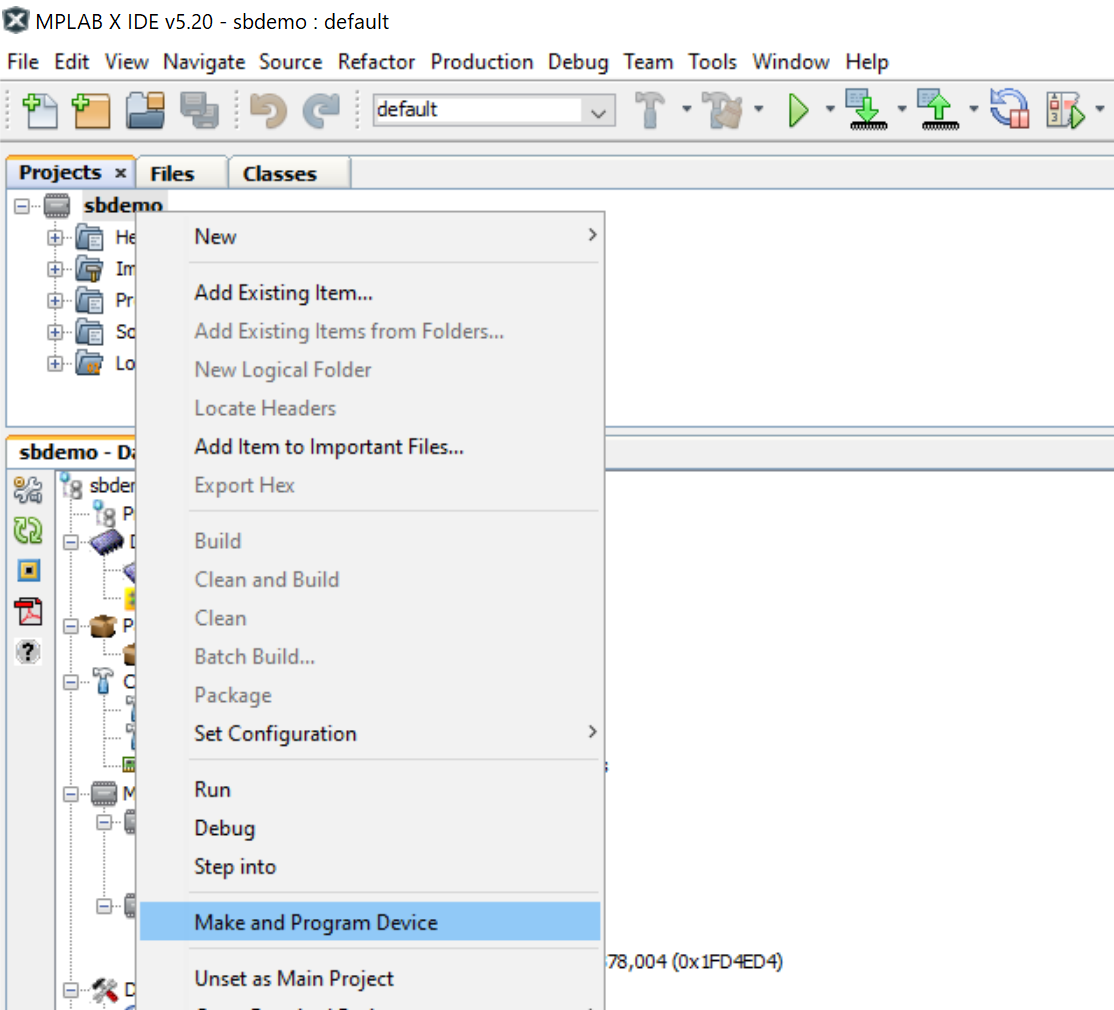

  • Once the project is ready, right click and select "Make and Program Device"

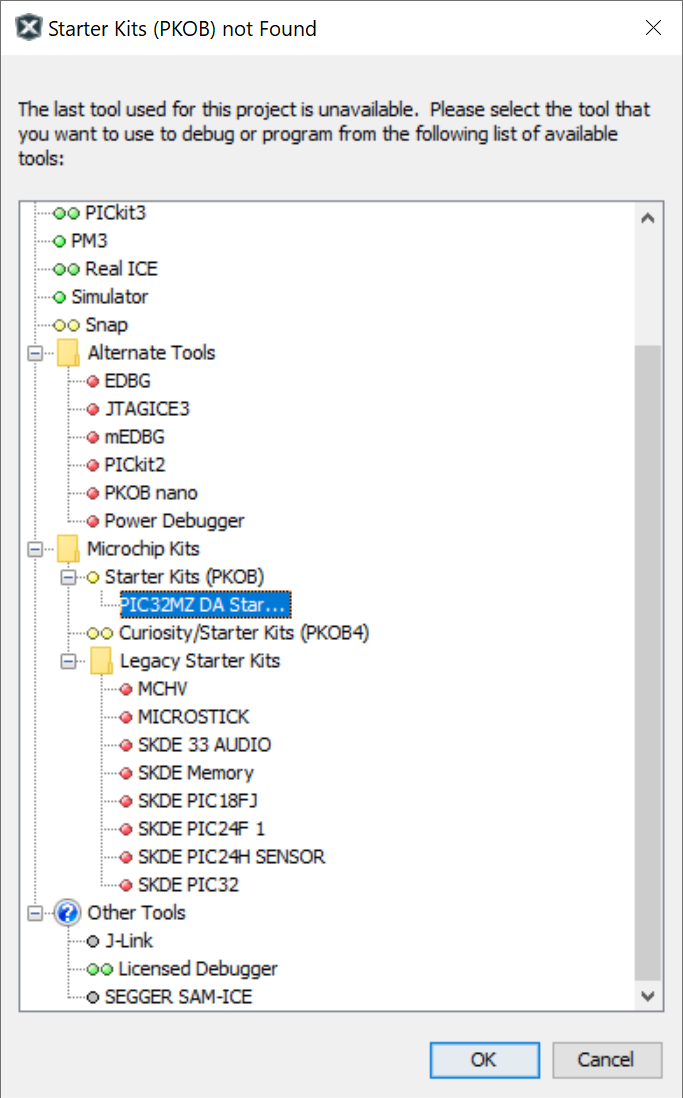

  • For the Hardware Tool, select the Microchip Kits->Starter Kits (PKOB)-> PIC32 DA Starter Kit

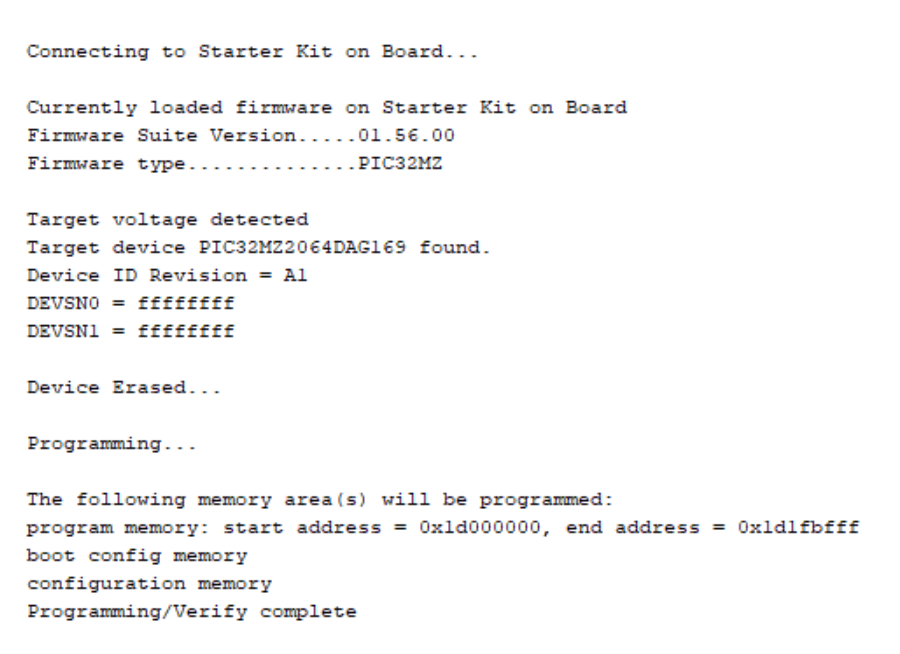

  • Once this is complete, the demo will be flashed and ready to autoboot
